63mm Y‑Pipe Mould

SINOMOULD is a professional custom injection mold maker, specially designed for mass production of 63mm Y-type three-way pipe fittings. Widely applicable to PPR, PVC, HDPE and other common plastic pipe materials, this product is an essential core tool for plumbing, drainage, heating and agricultural pipe system manufacturing industries. With mature structural design and precise CNC processing technology, SINOMOULD can stably produce high-standard Y pipe fittings with smooth surfaces, accurate dimensions and excellent pressure resistance, meeting the production demands of residential, commercial and industrial pipe fitting.

Standard Centrifuge Y-Pipe Mould Details

Below are examples of the most common parameters for Y-pipe moulds.

Y-pipe Mould Cavity Steel	S136 / DIN 1.2316	Injection Machine Type	DKM SV /PVC Series
Y-Pipe Mould Core Steel	S136 / DIN 1.2316	Plastic Material	PP/PVC
Mould Base Standard / Steel	P20	Ejection System	Hydralic Cylinder Ejection
Number of Cavities	1/2/4 cavities	Injection Cycle Time	45-60 seconds
Hot Runner System	Cold Runner	Mould Manufacturing Lead Time	40–65 days

Key Quality Points of Y-Pipe Moulds

✅ High precision & zero burr finished products

✅ Full automatic demoulding for high output

✅ Wear-resistant mold steel for long service life

✅ Custom cavity & professional after-sales service

Precision Machining Highlights for Y-Pipe Moulds

5-axis precision machining for Y junction area, smooth transition without step marks, lower fluid resistance.
High-precision milling & fine lapping on parting line, minimum flash.
Strict control on Y branch angle and tube concentricity to guarantee assembly tightness.
Precisely fitted core inserts, easy maintenance and long mould life.
Smooth cavity surface, reduces weld line and improves pipe strength.
Precision machined conformal cooling channels, uniform cooling, less product deformation & shorter cycle time.
Stable dimension consistency for mass production.

Y-Pipe Mould Images

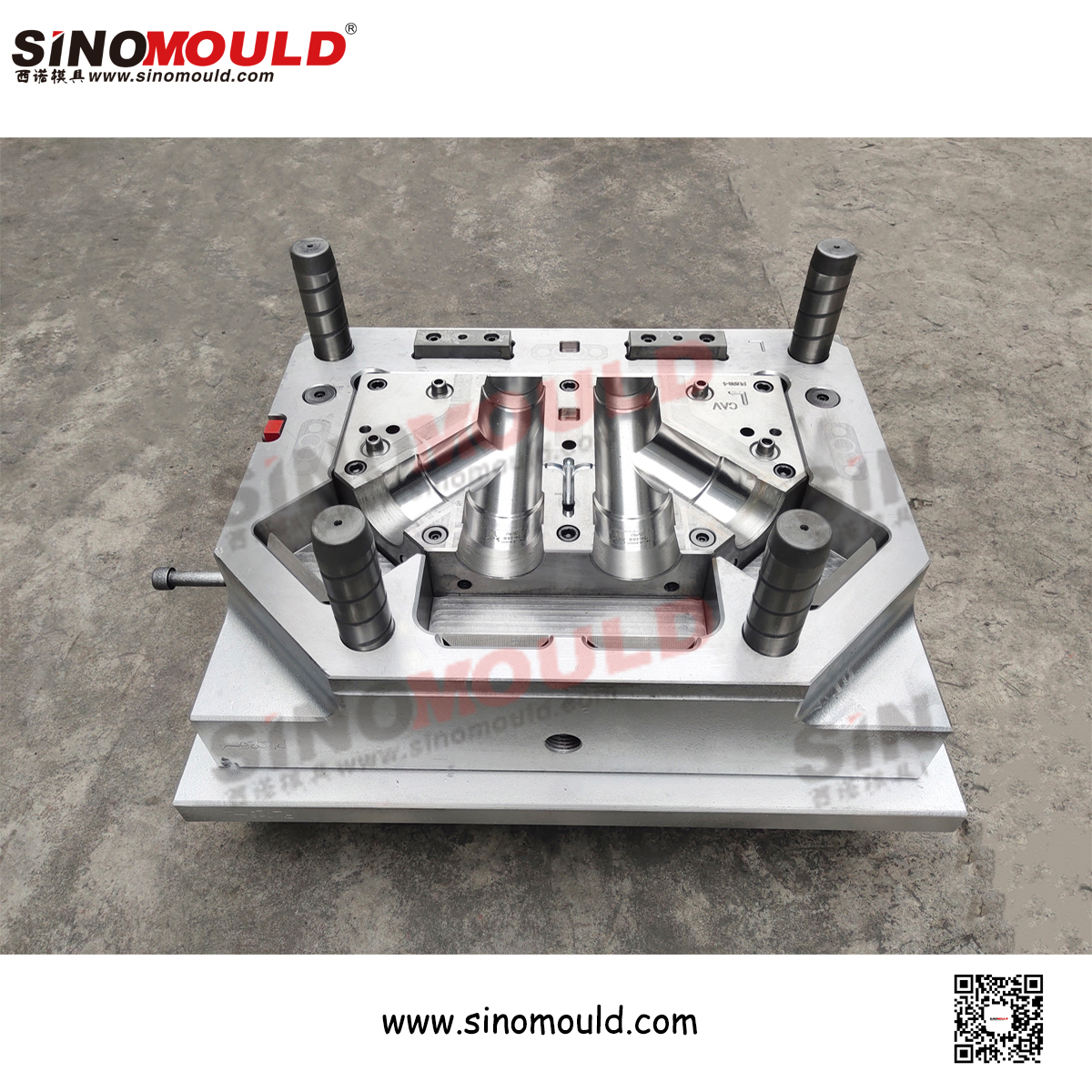

Showcasing the overall structure, cavity layout, and key machining details of the Y-pipe mould.

Y-Pipe Sample Images

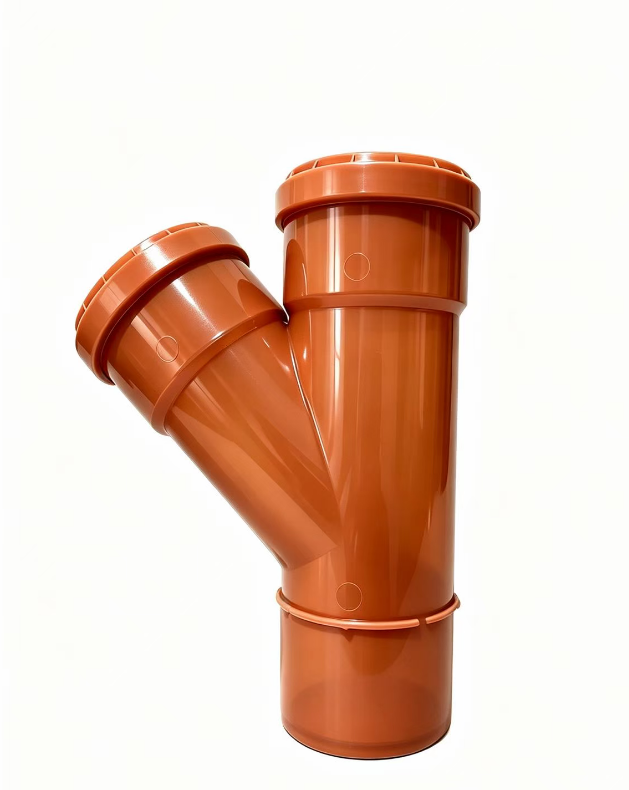

Sample parts demonstrating Y-Pipe dimensional consistency, smooth inner bore surfaces, and stable moulding quality.
