Automatic Flip‑Top Cap Mould

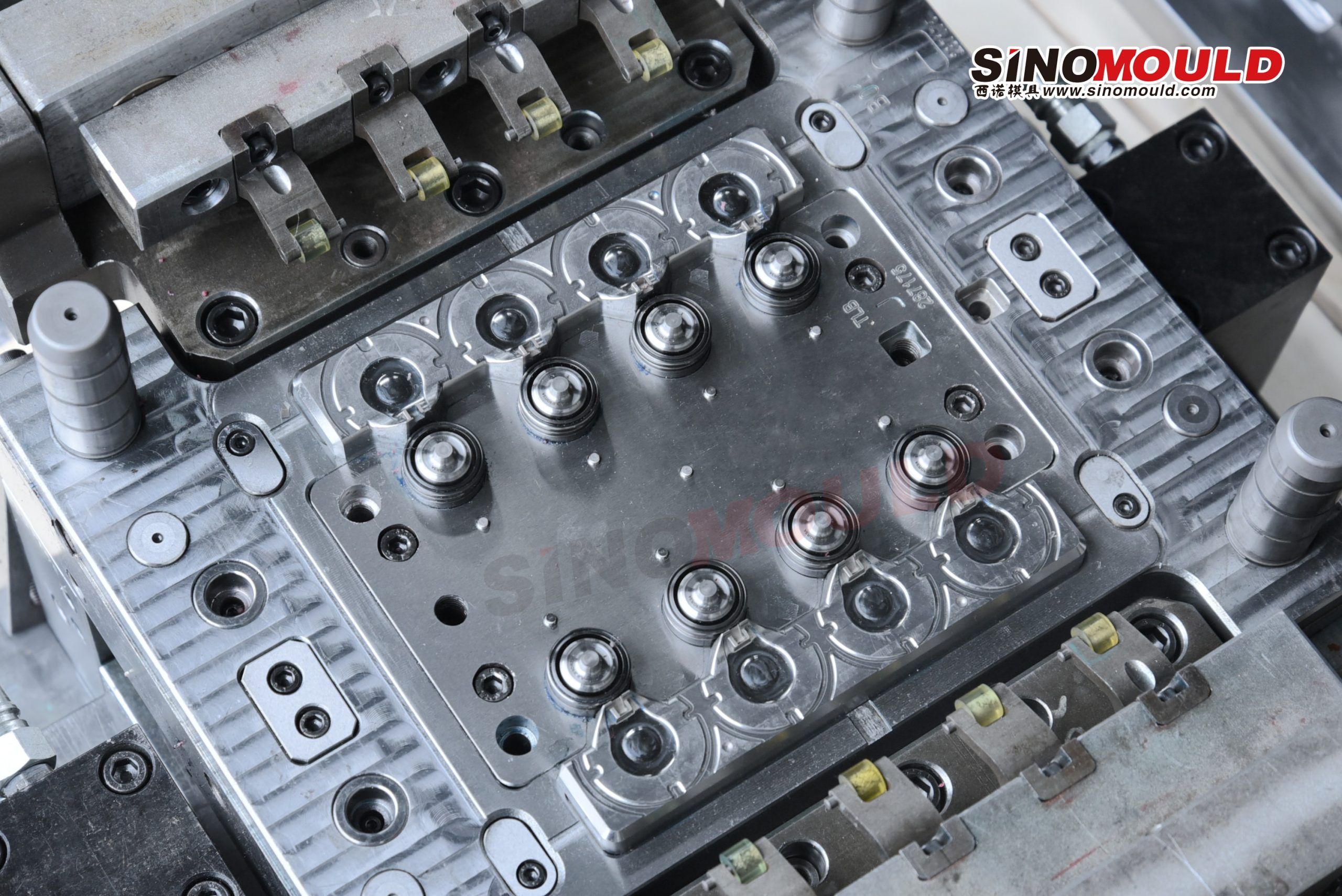

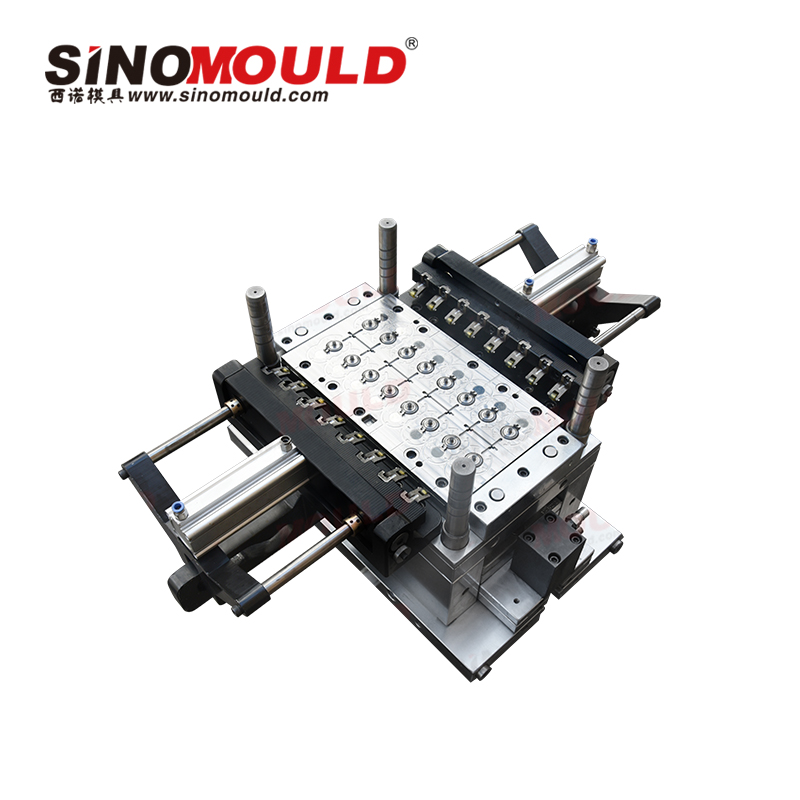

Also known as in-mold automatic hinge flip molds, automatic flip molds are specialized injection molds designed for plastic products with hinged lids. Their core advantage lies in the built-in independent hinge drive mechanism, which synchronously completes automatic flipping, fitting, shaping, and demolding during mold opening and closing. This realizes one-piece molding of lids and main bodies and eliminates manual bending, assembly, and trimming procedures.
Different from conventional molds that rely on post-molding manual flipping, automatic flip molds operate entirely through precise mechanical linkage. They deliver standardized flip angles, tight fitting, and deformation-free finished products with significantly improved consistency.

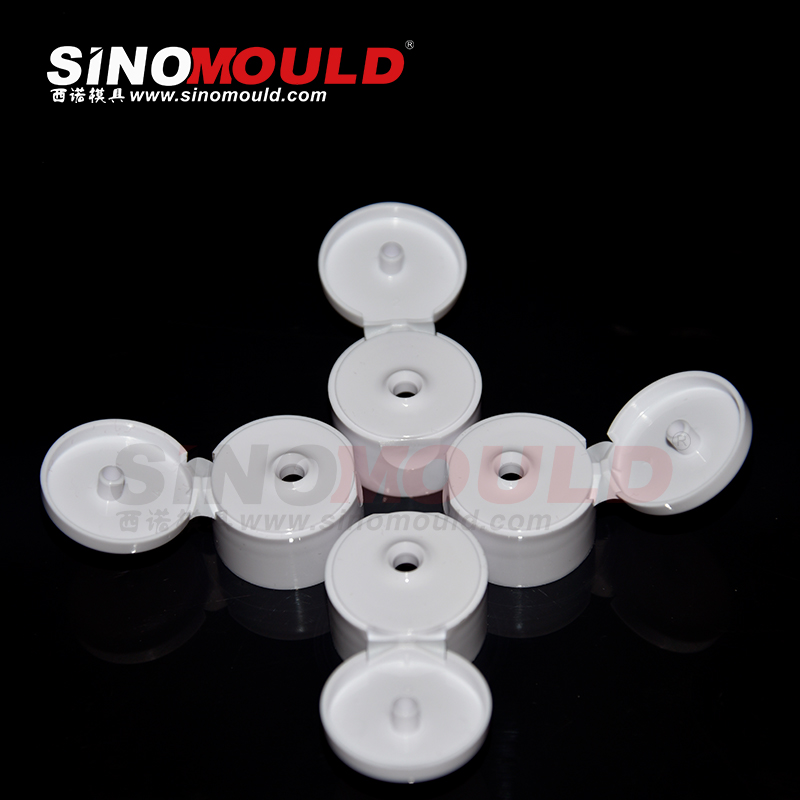

These moulds are widely compatible with common thermoplastics such as PP, PE. They are customizable for manufacturing disinfection bottle caps, skincare flip lids, food container lids, pharmaceutical flip covers, and daily chemical tube caps. Suitable for injection molding machines from 180T to 300T, they deliver stable and efficient performance for both small-batch customization and large-scale mass production, serving as essential equipment for automated upgrades in the packaging industry.
Standard Centrifuge Automatic Flip Top Cap Mould Details
| Mould Name： | Automatic Flip‑Top Cap Mould | Recommended Injection Machine | DKM Servo Series Injection Moulding Machine |
|---|---|---|---|
| Mould Core Material： | S136 | Mould Cavity Material： | S136 |
| Mould Base Standard / Steel | P20 | Ejection System | Stripper |
| Sliders, Inserts, Lifters Steel | High-strength tool steel with surface hardening treatment | Injection Process | High-speed injection, short cycle time, precise temperature control |
| Number of Cavities | 4–16 cavities | Plastic Matrerial： | PP |
| Hot Runner System | Fully hot runner system | Mould Manufacturing Lead Time | 40–65 days |
Quality Standards for Automatic Flip Top Cap Moulds
The core quality indicators of automatic flip top cap moulds focus on four key dimensions: flip action stability, long-term production accuracy, structural wear resistance, and finished product tightness. High-quality moulds must comply with premium industrial acceptance standards, detailed as follows:
1. Structural Stability
The core flip linkage and hinge transmission components must operate smoothly without stuttering or offset throughout mould opening and closing. After hundreds of thousands of opening and closing fatigue tests, the mould shows no loosening, deformation, jamming, or fracture. The flip angle remains accurate and consistent, eliminating batch defects such as warping and unsmooth flipping. Guide pins, guide sleeves, and positioning structures cooperate closely to ensure coaxiality and long-term dimensional stability during continuous production.
2.Product Accuracy & Sealing Performance
The flip lid fits tightly with the main body without gaps or height differences. Finished products are free of burrs, flash, shrinkage, bubbles, and other defects. For high-sealing scenarios such as food and medical applications, the lids maintain moderate opening and closing tightness without loosening after repeated use, sustaining qualified sealing performance. The dimensional consistency error is strictly controlled within the precision range, achieving a batch yield rate of over 99%.
3.Material Quality & Durability
Premium automatic flip moulds adopt high-grade mirror mould steel such as S136, 2344, featuring high corrosion resistance, hardness, and wear resistance, adapting to special production environments involving daily chemical and acidic/alkaline materials. Professional quenching and tempering heat treatment ensure uniform hardness and excellent cavity mirror finish. The smooth demolding prevents product surface scratches, extending mould service life and reducing subsequent maintenance costs.
4.Safety & Compatibility
Equipped with anti-stuck, anti-lock, and safety limit protection structures, the moulds effectively avoid mould damage, equipment failure, and product scrap during high-speed production. The standardized structure enables convenient disassembly, maintenance, and repair, and supports seamless docking with automated production lines to realize unmanned continuous operation with high safety and compatibility.
Key Processing Points of Automatic Flip Top Cap Moulds
Automatic flip moulds feature complex structures and high linkage precision requirements. Processing craftsmanship directly determines mould stability and service life. Strict technical control is implemented throughout design, machining, and commissioning, with core key points listed below:
1.Structural Optimization & Design
3D modeling is conducted with professional mould design software including UG, CAD. The built-in flip linkage mechanism is fully optimized with accurate calculation of hinge motion trajectory, flip angle, and demolding stroke to avoid motion interference. The cavity layout is optimized according to product dimensions, material characteristics, and production volume, ensuring balanced pressure, temperature, and runner distribution in multi-cavity moulds for consistent molding quality. Meanwhile, the cooling water channel layout is reasonably arranged to fully cover cavities and cores, achieving uniform and rapid cooling, shortening molding cycles, and preventing product deformation and shrinkage.
2.Precision Machining Technology
Core cavities, cores, and hinge transmission parts adopt a combined processing technology of high-speed CNC carving and EDM finishing. The precision of key matching surfaces is strictly controlled to prevent loose flipping and misalignment caused by excessive fitting gaps. All components are finely polished to remove burrs and sharp edges, ensuring smooth operation of moving parts. Mirror polishing of cavities guarantees excellent product surface finish. Strict assembly precision control is implemented for guide pins, guide sleeves, and positioning pins. Alignment and debugging are conducted after assembly to ensure coaxiality and operational stability.
3.Heat Treatment & Surface Treatment
Integral heat treatment is performed after steel machining with precisely controlled quenching temperature and holding time to improve overall mould hardness and wear resistance, preventing deformation and abrasion during long-term operation. Food-grade and medical-grade moulds undergo additional anti-rust and anti-corrosion surface treatment to adapt to harsh production environments, avoid material corrosion, and ensure hygienic finished products. All transmission and moving parts are reinforced for wear resistance to extend the fatigue life of hinge structures and ensure stable operation for hundreds of thousands of cycles.
4.Mould Testing & Calibration
Multiple mould tests are conducted after assembly to verify flip stability, molding cycle, dimensional accuracy, and sealing performance. Problems such as flipping stuttering, loose fitting, and product deformation are precisely adjusted by optimizing structural gaps and injection parameters including pressure, temperature, and cooling time. Qualified moulds undergo tens of thousands of fatigue simulation tests to verify long-term production stability, ensuring direct mass production availability after delivery without hidden quality risks.
As intelligent precision moulds for the injection molding and packaging industries, automatic flip top cap moulds have revolutionized the traditional production mode of hinged flip products through integrated molding, automatic flipping, high-efficiency mass production, and high stability. They help manufacturers significantly improve production efficiency, reduce costs, and enhance product quality.
Every detail from precise parameter control and strict quality inspection to refined processing techniques determines the mold’s mass production capability and service life. With the continuous upgrading of automated and precision manufacturing demands, SINO automatic flip top cap mould will become core equipment for more packaging manufacturers to achieve quality and efficiency improvement.
