Water Filter Mould

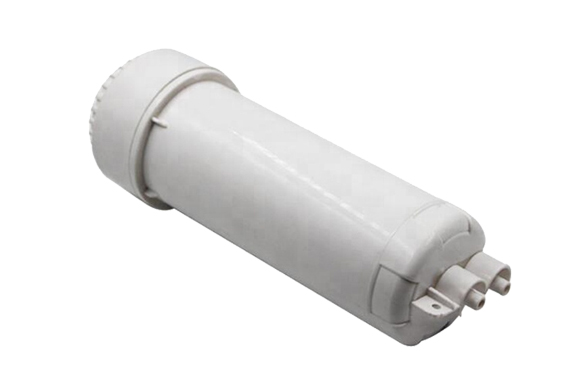

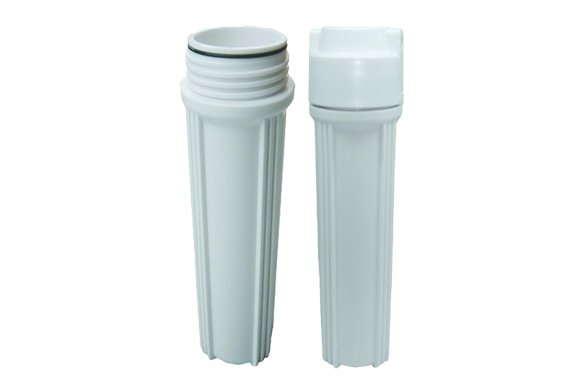

SINOMOULD supplies Water Filter Mould, is the main water purifier mould manufacturer in China offer top quality Water Filter Moulding. We specialize in manufacturing high-precision injection moulds for water filter parts, including filter housings, filter cartridges, connectors, covers.
Designed for food-grade materials, our moulds feature stable structure, excellent sealing and high dimensional accuracy. We support multi-cavity, deep cavity, thread unscrewing and slider structures for mass production.Reliable, durable and efficient for household and industrial water treatment equipment.

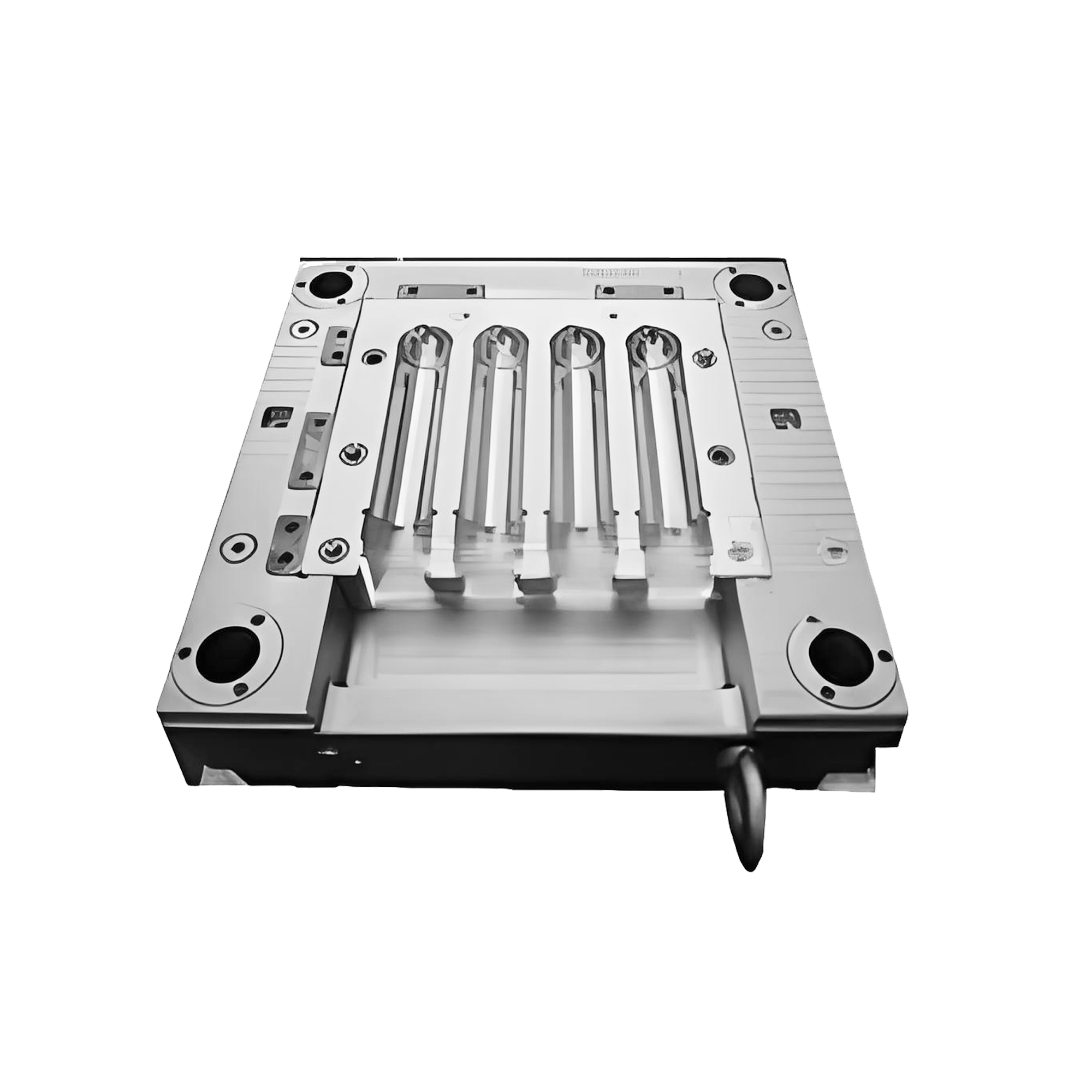

Water Filter Mould Parament
Mould Name： | Water Filter Mould | Mould cavity Material： | DIN1.2316
|
Product Size： | dia100*250mm
| Mould core Material：
| DIN1.2316
|
Mould Cavity： | 1cavity
| Mould Injection System： | 1 tips hot runner
|
Mould Size： | 750*620*800mm
| Mould Ejection System： | Stripper eject system
|
Suitable Machine： | DKM550SV
| Mould Cycle Time： | 35 Seconds |
Delivery Time： | 75 working days | Mould Running： | 500K (5 to 6 times more than normal) |
Processing Requirements of Water Filter Mould
- Mould Design: Professional design with mould flow analysis to optimize gating, cooling, venting and ejection. Reasonable draft angle and reliable core-pulling for deep-cavity and threaded parts.
- Mould Steel Selection: High-quality mould steel with excellent polishability, wear resistance and corrosion resistance to ensure long life and food-grade surface finish.
- Precision Machining: CNC machining, EDM, wire cutting, grinding ensure high precision. Strict tolerance control for parting surface, matching parts and guiding components.
- Surface Polishing: Cavity, runner and appearance parts finished to mirror polish for smooth demoulding, clean look and easy cleaning.
- Mould Testing & Approval: Full mould testing including sample checking, dimension inspection, ejection and leakage validation. Only delivered after full approval for stable mass production.
The design and manufacturing of water filter moulds embodies a comprehensive approach to food-grade safety, leak-proof sealing, high-precision structure, and long-term durability. SINOMOULD continues to focus on technological research and development in the water purification appliance field, strictly controlling material environmental protection, fitting precision, surface cleanliness, and structural stability. We are dedicated to creating safe, reliable, and high-quality water filter moulds, providing solid support for the efficient mass production of healthy water purification products.
