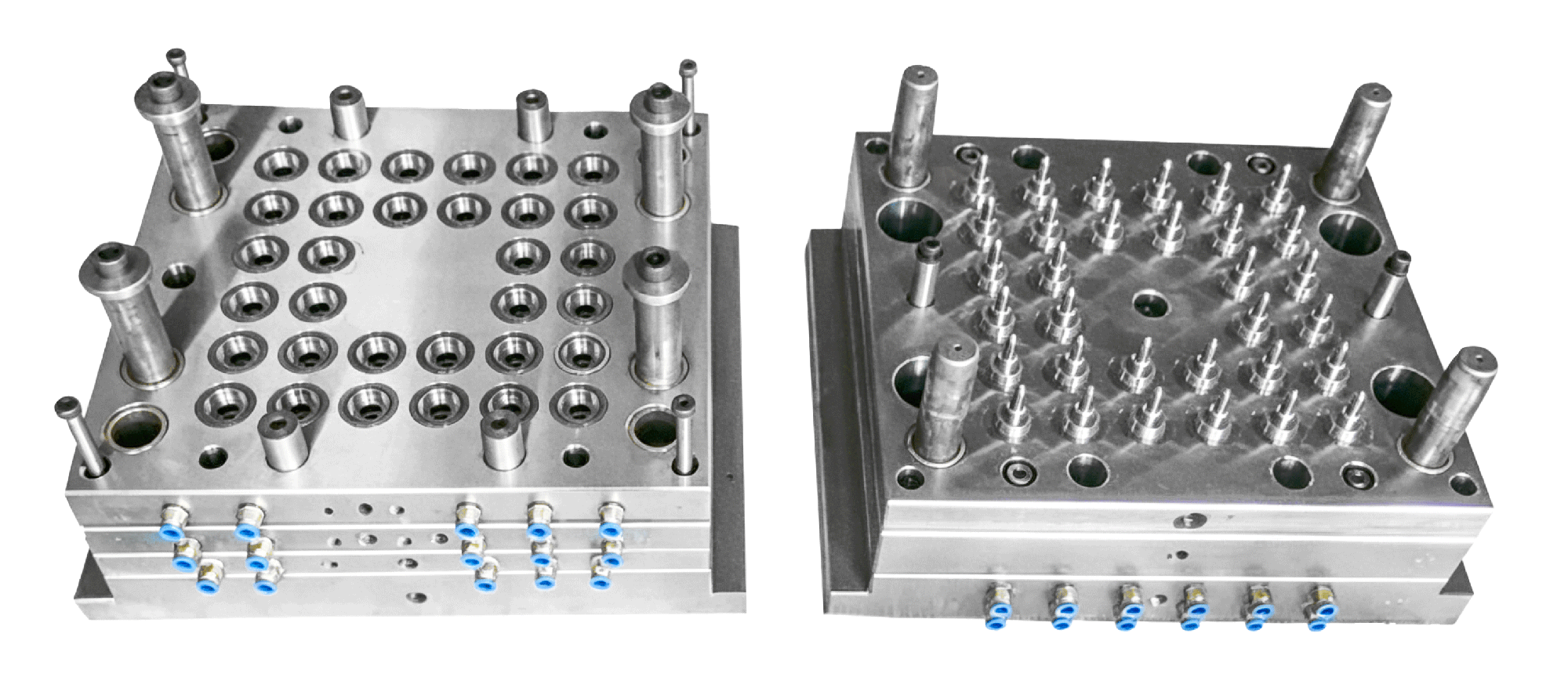

Centrifuge Tube Mould
SINO MOULD specializes in the design and manufacturing of centrifuge tube moulds, including standard centrifuge tube moulds, centrifuge tube moulds with caps, and flexible combined mould solutions. Our moulds are engineered to meet medical cleanliness standards, dimensional stability, and long-term high-speed production requirements, supporting large-scale manufacturing of laboratory and medical disposable products.
Standard Centrifuge Tube Mould Details
Below are examples of the most common parameters for Centrifuge Tube moulds.
| Centrifuge Tube Mould Cavity Steel | S136 / DIN 1.2316 / M340 | Recommended Injection Machine | DKM FE Series All-Electric Injection Moulding Machine |
|---|---|---|---|
| Centrifuge Tube Mould Core Steel | S136 / DIN 1.2316 / M340 | Plastic Material | Medical-grade PP |
| Mould Base Standard / Steel | 4Cr13 Pre-hardened Stainless Steel | Ejection System | Stripper |
| Sliders, Inserts, Lifters Steel | High-strength tool steel with surface hardening treatment | Injection Process | High-speed injection, short cycle time, precise temperature control |
| Number of Cavities | 8–64 cavities | Injection Cycle Time | 8–12 seconds |
| Hot Runner System | Fully hot runner system | Mould Manufacturing Lead Time | 40–65 days |
Key Quality Points of Centrifuge Tube Moulds
- High concentricity and inner bore dimensional consistency ensure accurate centrifuge tube volumes and eliminate errors.
- Balanced multi-cavity design guarantees consistent weight and dimensions across all tubes to avoid quality variations between batches.
- Mirror-polished cavities minimize liquid residue, ensuring precision and reliability in laboratory applications.
- Stable hot runner temperature control system prevents injection moulding defects such as stringing, black spots, and short shots.
Precision Machining Highlights for Centrifuge Tube Moulds
- CNC high-speed precision machining with critical dimensional tolerances controlled to ±0.01 mm ensures high mould accuracy.
- Multi-process inspection, including concentricity, bore diameter, length, and wall thickness, guarantees high-quality centrifuge tube moulds.
- Ultra-precision polishing ensures smooth inner bore surfaces, reducing liquid adhesion and residue build-up.
- Wear-resistant reinforced slides and ejection systems ensure stable and durable operation of the centrifuge tube moulds under high-frequency production.
Mould Flow Analysis for Centrifuge Tube Moulds
Using Mouldflow analysis, we optimize the filling, packing, and cooling processes of the centrifuge tube mould. The analysis simulates the injection moulding process, optimizing cavity layout, gate positions, and temperature control solutions, ensuring uniform cavity filling and reducing air pockets, warping, and short shots, enhancing the moulding stability of the centrifuge tube mould.
